POWER MANAGER 3G

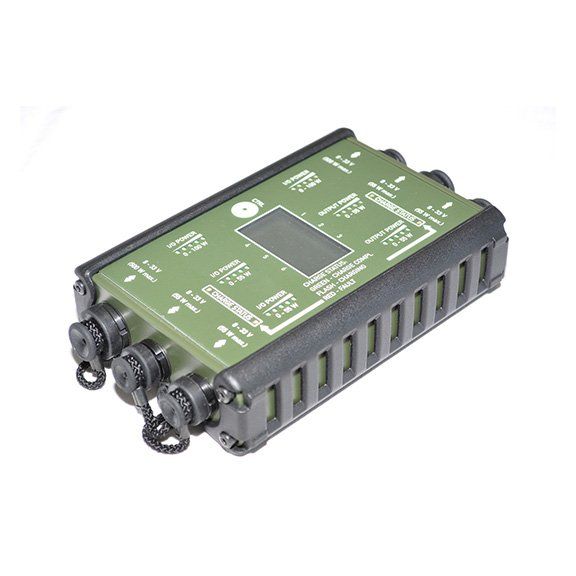

The SFC Power Manager 3G is a portable, intelligent power distribution unit that eliminates the need for operators to carry an abundant amount of additional power cords.

Innovation

This innovative power distribution unit uses clever cable coding to automatically detect the connected devices and regulate the output voltage respectively. This process allows for minimal power loss and efficient power distribution that elongates the output of the devices. This versatile power resource allows the users to power a wide range of tools in the field, such as, solar panels, hybrid batteries, vehicle power and, fuel cells to power devices or charge batteries.

> Universal charging capability that provides portable, intelligent power distribution


> Lightweight, multipurpose, convenient battery charger with heightened sustainability


> In the energy network, the SFC Power Manager 3G can charge several batteries simultaneously

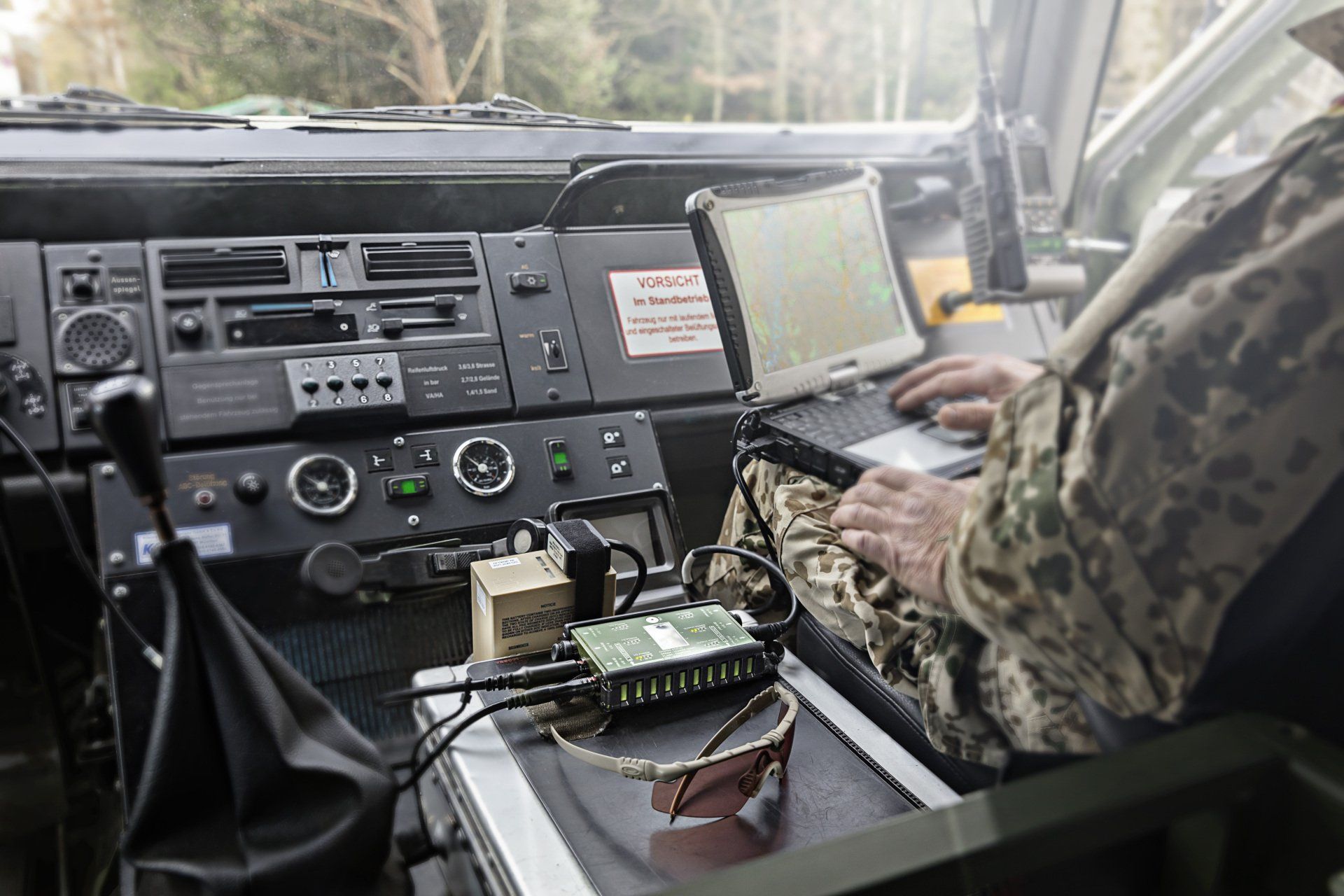

> Intelligently distributes the vehicle's energy to different loads


> Additional loads can be included later utilizing specific coded cable


> Deployed effectively since 2010


> 2 bi-directional battery charging ports: (65 W) 2 battery and device outputs (65 W)


> Connections: 2 power inputs / outputs (500 W)


> Voltage range: 8 - 33 V DC


> Power range: max. 430 W


> Operating Temperature: -32 °C to +55 °C / -26 °F to 131 °F


> Weight: 520g/1.2lbs


> Dimensions: 162 x 95 x 36mm/6.4 x 3.7 x 1.4in

Related Projects

EMILY 3000 FUEL CELL GROUND DEPLOYMENT SYSTEM
EMILY 3000

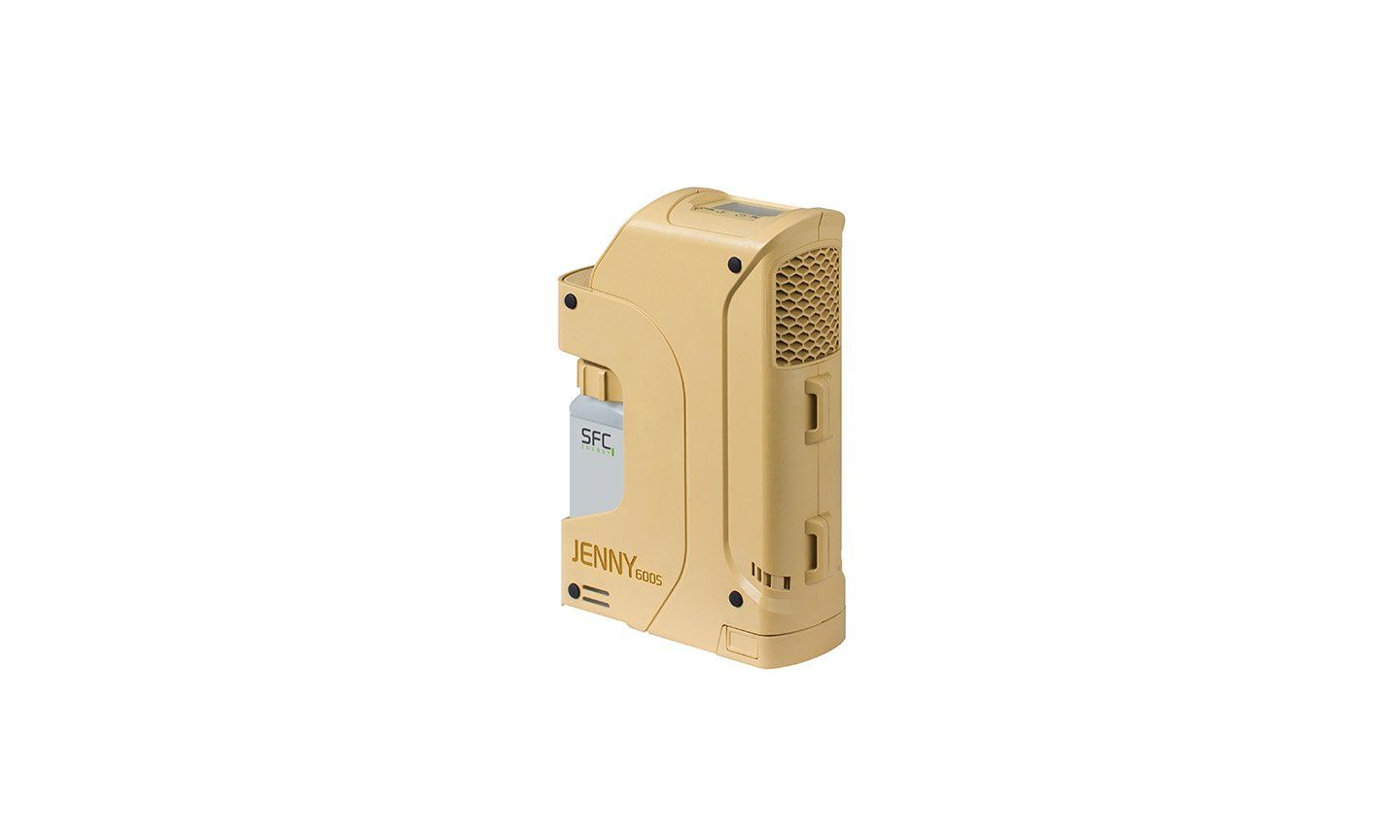

JENNY 600S
