FOBLite HQ

FOBLite HQ

The FOBLite HQ Lighting System is designed to provide a low SWAP solution for early entry tactical lighting requirements within HQ and semi-fixed infrastructure.

Innovation

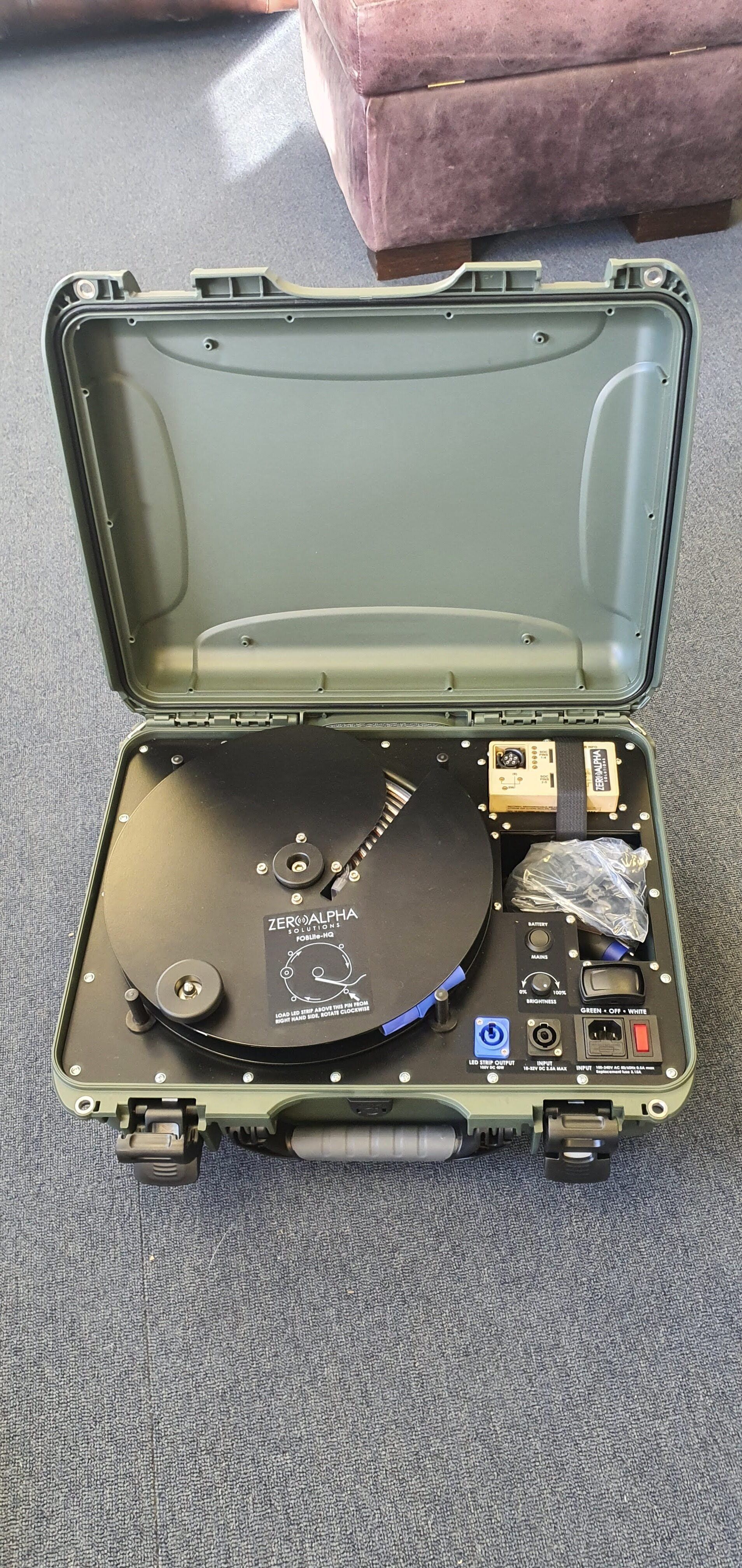

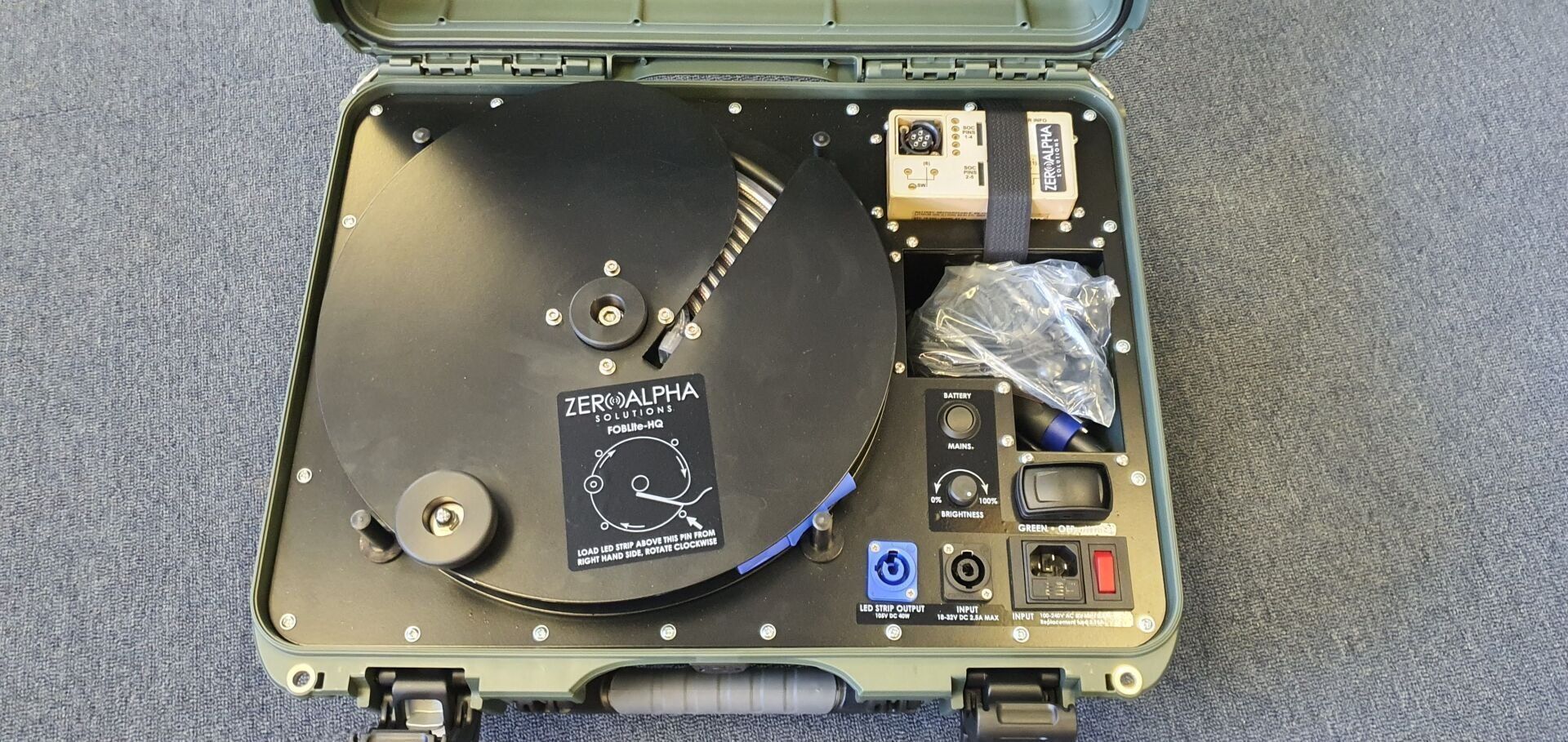

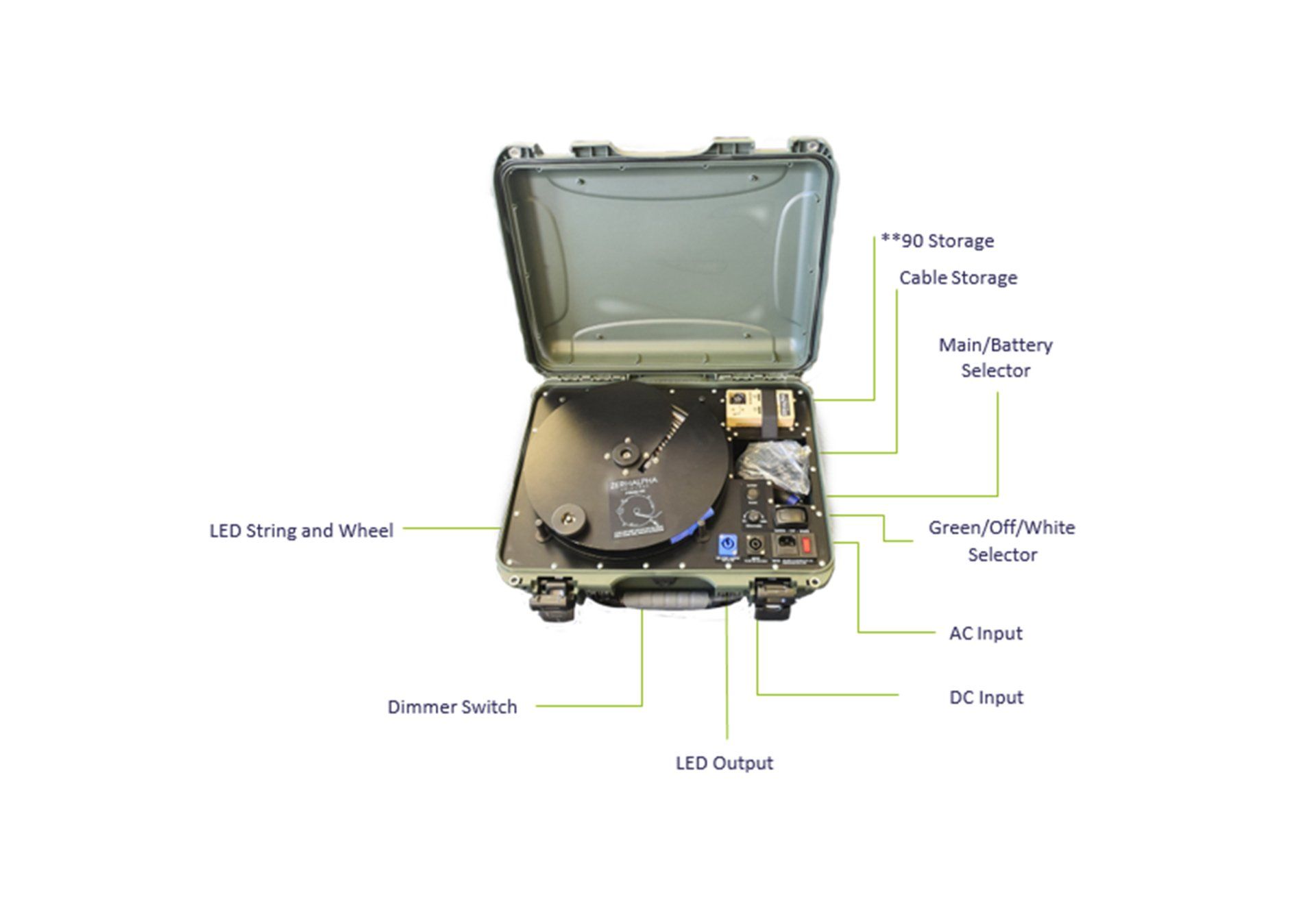

The FOBLite HQ system provides both white and green light from a custom and robust single twin LED strip. The system is housed in a lightweight IP65 NANUK transportation and storage case with fully integrated controls and power management. The LED strip is housed via its dedicated deployment system, ensuring exact storage and protection each and every time. Power to the system is provided by both AC and DC sources. Field power can be provided from any DC input ranging from 19-33v, meaning it is able to run from in-service radio batteries or from vehicle power if required. With a dimmer control system, the appropriate amount of illumination can be provided to meet the operational situation.

> Applications Supported Command Posts/Staff Working Environments, Accommodation, Medical Aid Stations, Vehicle Shelters, Buildings of Opportunity


> Removes both thermal and acoustic signatures currently needed for field lighting with quick and easy installation


> Powered by in-service radio batteries


> Reduces overall emissions and reliance on field generators


> Units can be used in extreme environments


> Input Voltage: 18-32v DC (2.5A max) or 100-240 AC 50/60 Hz (0.5A max), LED Output Voltage: 105v DC (40w)


> LED: White/Green


> Finish Color: GREEN, Casing: NANUK


> Operating Temperature: -20°C to +50°C / Storage Temperature: -40°C to +50°C


> IP Rating: IP65


> Weight: 8.5kg
